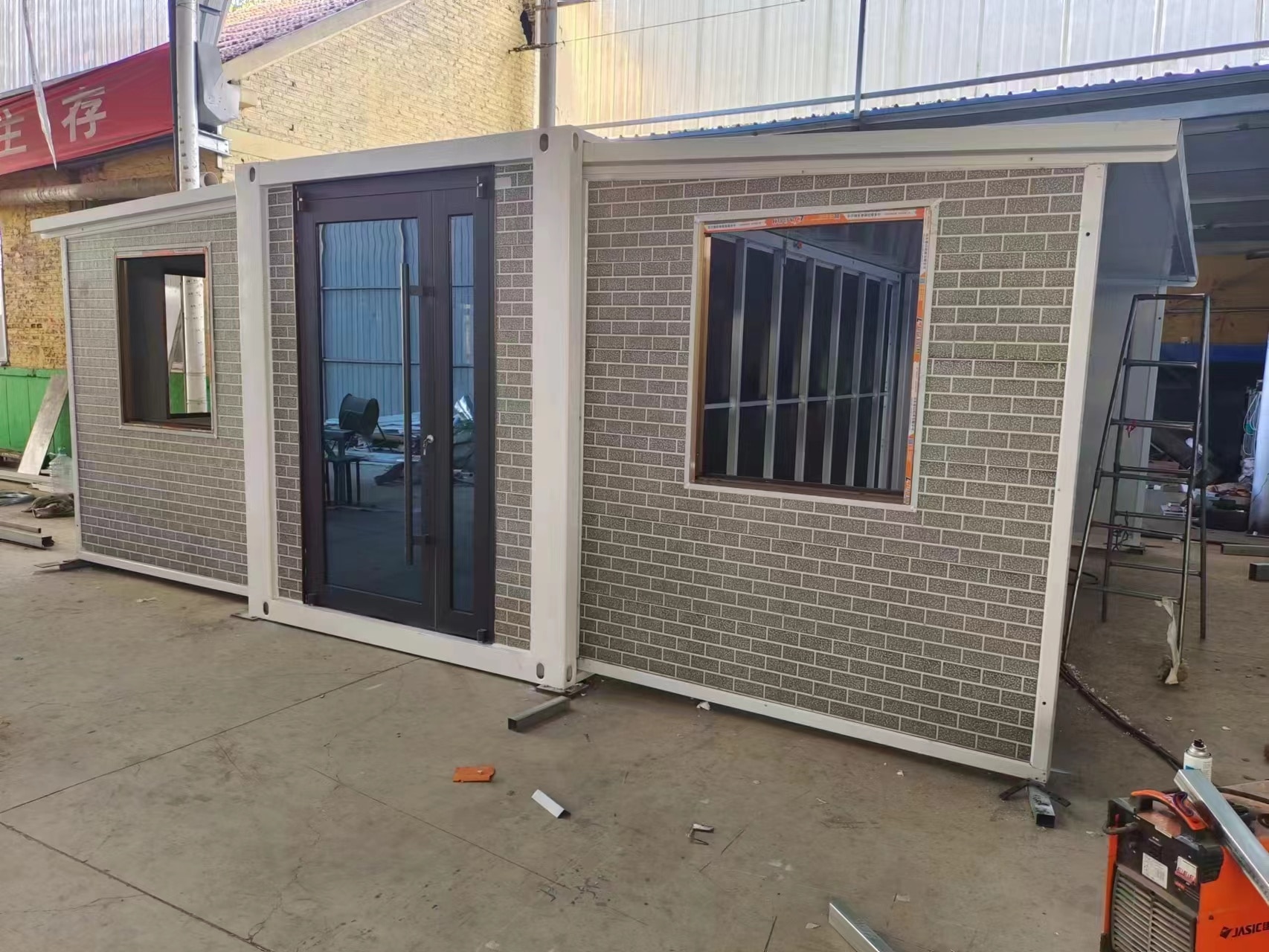

20-Foot Expandable Container: Maximize Space with Innovative Modular Living

The 20-Foot Expandable Container is a versatile and innovative modular solution designed to maximize space and functionality. This expandable container offers a unique combination of portability and expandability, making it ideal for a wide range of applications, from temporary accommodation to remote workspaces and even emergency shelters. Its robust construction and modern design ensure durability and aesthetic appeal.

The 20-Foot Expandable Container is more than just a modular structure—it’s a statement of innovation and adaptability. Its versatile design, robust construction, and high-quality materials ensure long-term reliability and exceptional performance. Whether you need a temporary solution or a permanent space, the 20-Foot Expandable Container offers the perfect blend of flexibility, durability, and style. Experience the future of modular living with the 20-Foot Expandable Container.

• Folded Dimensions: 5850mm (L) × 2200mm (W) × 2530mm (H) / 19.2ft (L) × 7.2ft (W) × 8.3ft (H)
• Expanded Dimensions: 5850mm (L) × 6280mm (W) × 2530mm (H) / 19.2ft (L) × 20.6ft (W) × 8.3ft (H)

• Configuration: 2 Bedrooms + 1 Bathroom (shower, vanity)
• Wall Thickness: 50mm

• Roof Structure: Galvanized steel frame 120mm × 60mm × 2.3mm / 80mm × 40mm × 1.5mm / 20mm × 40mm × 1.0mm (ceiling support)
• Bottom Structure: Galvanized steel frame 120mm × 60mm × 2.5mm / 100mm × 50mm × 1.4mm
• Folding Frame: Galvanized steel frame 80mm × 80mm × 1.6mm / 80mm × 40mm × 1.6mm
• Corner Posts: Galvanized steel 210mm × 160mm × 2.3mm
• Lifting Hooks: 100mm × 200mm × 4mm galvanized steel (8 pieces)

• Wall Panels: 50mm thick EPS with 0.35mm thick color steel plates on both sides; partition walls 50mm thick
• Roof Panels: 50mm thick PU sandwich panels with 0.35mm thick color steel plates on both sides
• Ceiling Panels: Bamboo fiber boards, 13 sqm
• Flooring: High-strength bamboo wood membrane boards with PVC flooring, 26 sqm

• Entrance Door: KFC-style door, 1 set
• Windows: PVC sliding windows, 950mm × 1100mm, 6 + 1 sets

• Electrical Distribution: Distribution box, circuit breaker, protector, 4 sockets, 120m American standard wire, 6 LED ceiling lights
• Sealing: Sealing tape, aluminum foil butyl adhesive tape, 380m
• Accessories: Screws, 793 structural adhesive, 995 silicone weatherproof adhesive, transparent glass glue, 1 set

• Bathroom: Toilet, integrated bathroom, cabinet-style sink, tile flooring (color selectable)
• Plumbing System: PPR25 cold and hot water pipes, quick connectors, PVC110 sewage pipe, PVC50 pipe, 1 set

• Ready-to-Use: No assembly required; deploy immediately.
• Portability: Easy to move, transport, and clean.
• Performance: Waterproof, soundproof, and thermally insulated for comfort and sustainability.
• Aesthetic Appeal: Modern design with multiple color options and finishes.
• Versatility: Suitable for various environments and applications, with flexible space utilization.
