Durable Modular Structure with Steel & Sandwich Panels | Easy Transport & Installation

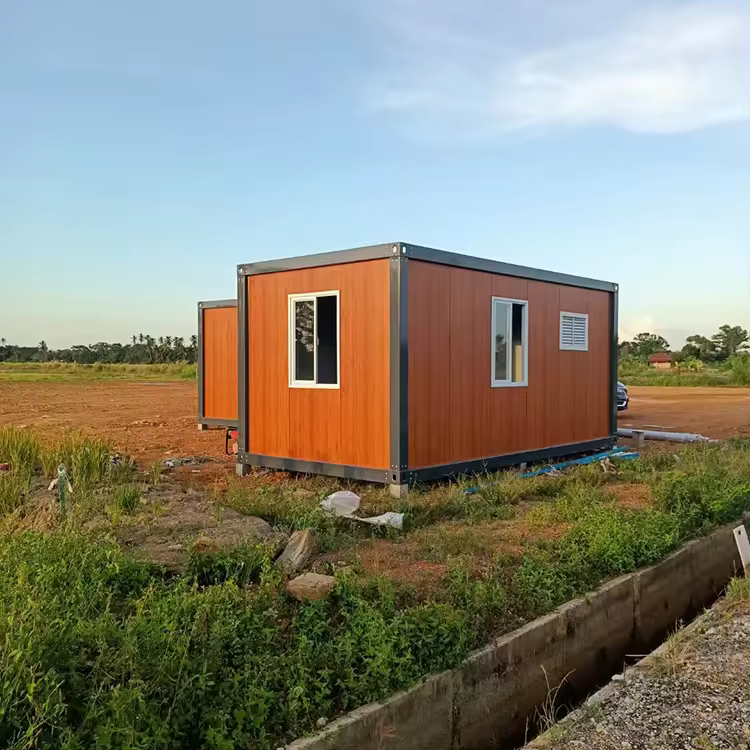

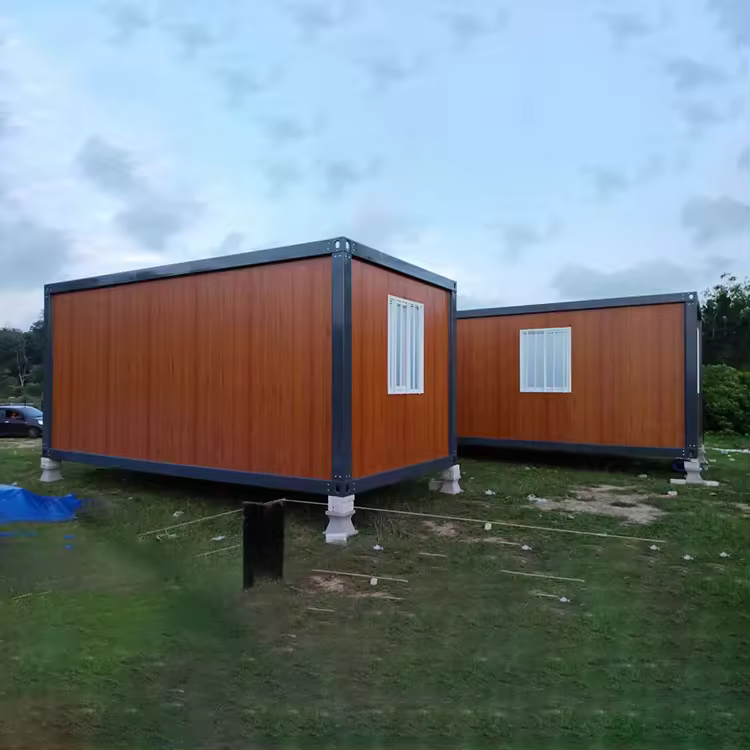

This modular structure is designed for exceptional durability and functionality, combining high-quality steel with robust sandwich panels. It is engineered for easy mobility, convenient transportation, and simple cleaning with water. The structure offers superior reliability, ease of installation, and an aesthetically pleasing design, making it suitable for a wide range of applications.

Material:

Steel + Sandwich Panels

Features:

– Easy to move, transport, and clean with water.

– Reliable structure with convenient lifting and installation capabilities.

– Aesthetically designed for modern and functional use.

Dimensions:

2990 mm (9 ft 9.7 in) × 6055 mm (19 ft 10.5 in) × 2896 mm (9 ft 6 in)

Components:

1. Top Frame

   – Beams:

     – 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces

     – 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces

   – Panels:

     – 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)

   – Purlins:

     – 80 mm × 40 mm × 1.2 mm (3.15 in × 1.57 in × 0.047 in)

   – Insulation:

     – 18 sqm (193.75 sq ft) of Glass Wool

   – Cladding:

     – 18 sqm (193.75 sq ft) of Painted Steel Sheet (0.45 mm thick / 0.018 in)

2. Bottom Frame

   – Beams:

     – 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces

     – 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces

   – Corner Connectors:

     – 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)

   – Purlins:

     – 9 pieces of 100 mm × 50 mm × 1.2 mm (3.94 in × 1.97 in × 0.047 in)

3. Columns

   – 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 in × 5.91 in × 8 ft 3.4 in) with 2.0 mm thickness (0.079 in)

4. Bottom Accessories

   – 50S Trough

5. Floor

   – 5 pieces of 18 mm Cement Fiber Board (0.71 in thick)

6. PVC Flooring

   – 1.6 mm (0.063 in) thick PVC Floor

7. Door

   – Steel Door: 970 mm × 1970 mm (3 ft 2.2 in × 6 ft 5.4 in)

8. Windows

   – PVC Single-Glazed Sliding Windows: 930 mm × 1200 mm (3 ft 0.6 in × 3 ft 11.2 in) × 2

9.Wall Panels

   – Steel Rock Wool Sandwich Panels: V950, 0.3 mm/50 (50 kg/m³)

10. Pipes

    – 4 pieces of 50 mm PVC Pipe, 2750 mm long (2 in × 9 ft 0.2 in)

11. Ceiling

    – Type 831 Suspended Ceiling

12. Edge Trimming

    – 4 pieces of Corner Trimming

13. Accessories

    – 1 set of Bolts and Adhesive

14. Accessories

    – Baseboard

15. Electrical System

    – 1 three-prong socket

    – 3 five-prong sockets

    – 1 switch distribution box

    – 1 industrial socket

    – Electrical wiring

    – 2 LED Light Strips (36W each, integrated into the interior wall corners)
