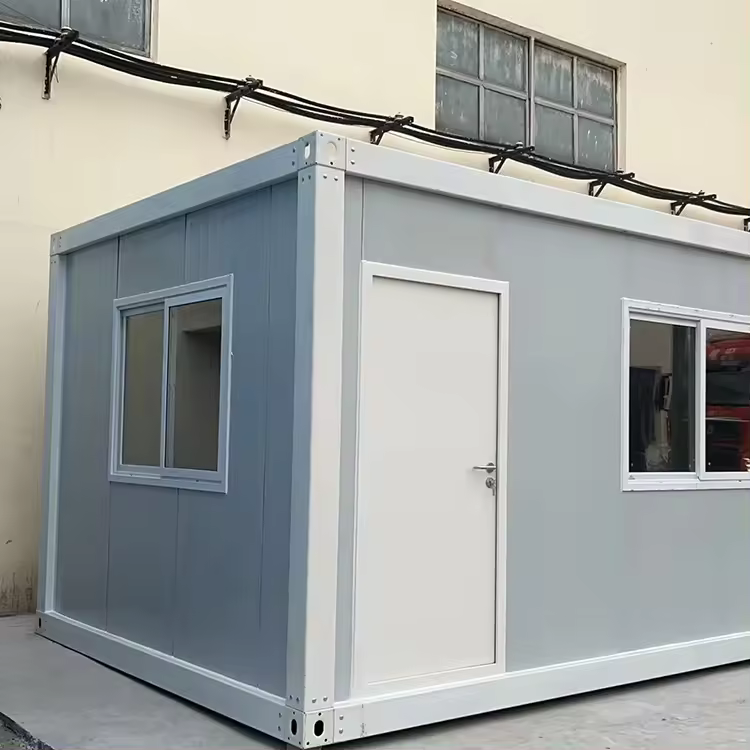

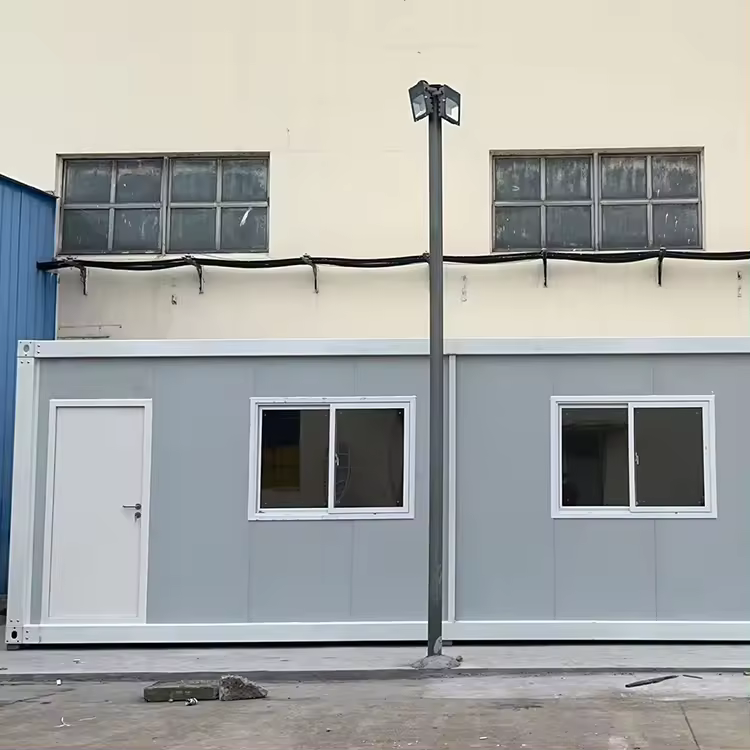

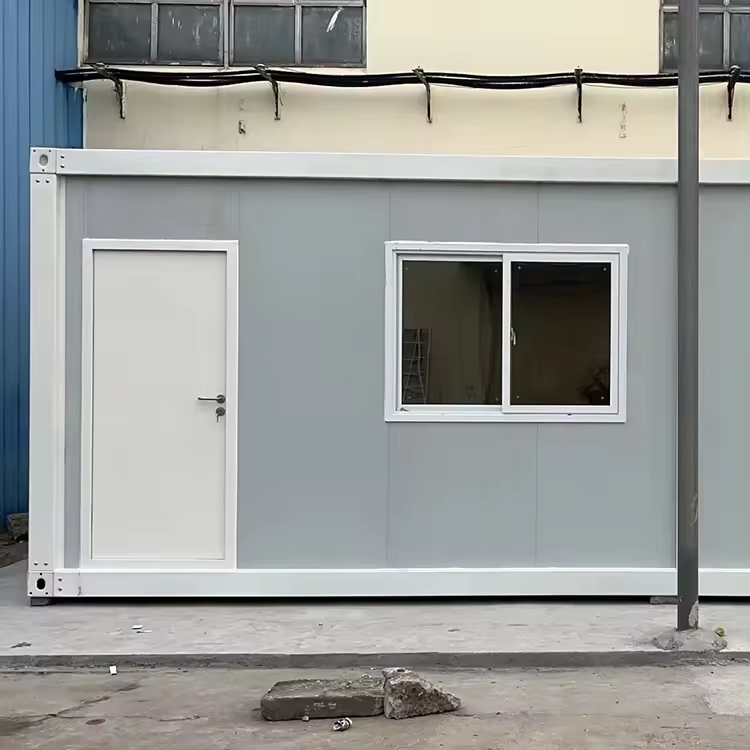

Durable Modular Structure: Versatile, Eco-Friendly, and Easy to Assemble

This product is a high-quality modular structure designed for maximum versatility and durability. Constructed from steel and sandwich panels, it offers exceptional ease of assembly, disassembly, and transportation, making it suitable for a wide range of environments. The structure is designed to last up to 30 years and features excellent waterproofing, sound insulation, thermal insulation, and environmental sustainability. Its modular design allows for easy customization and adaptability to various applications.

Components and Specifications

1. Top Frame

• Beams:
  • 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces
  • 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces
• Corner Brackets:
  • 210 mm × 150 mm (8.3 inches × 5.9 inches) × 4 pieces
• Purlins:
  • 80 mm × 40 mm × 1.2 mm (3.1 inches × 1.6 inches × 0.05 inches)
• Insulation:
  • 18 m² (193.75 sq ft) of glass wool
  • 18 m² (193.75 sq ft) of painted steel sheet (thickness: 0.45 mm / 0.018 inches)

2. Bottom Frame

• Beams:
  • 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces
  • 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces
• Corner Connectors:
  • 210 mm × 150 mm (8.3 inches × 5.9 inches) × 4 pieces
• Purlins:
  • 100 mm × 50 mm × 1.2 mm (3.9 inches × 2 inches × 0.05 inches) × 9 pieces

3. Columns

• Columns:
  • 210 mm × 150 mm × 2526 mm (8.3 inches × 5.9 inches × 99.4 inches) × 4 pieces
  • Thickness: 2.0 mm (0.08 inches)

4. Bottom Accessories

• Trough:
  • 50S water trough

5. Floor

• Cement Fiberboard:
  • 18 mm (0.7 inches) thick × 5 pieces

6. PVC Flooring

• Thickness:
  • 1.6 mm (0.06 inches)

7. Door

• Steel Door:
  • Size: 970 mm × 1970 mm (38.2 inches × 77.6 inches)

8. Windows

• PVC Single-Glazed Sliding Windows:
  • Size: 930 mm × 1200 mm (36.6 inches × 47.2 inches) × 2 pieces

9. Wall Panels

• Steel Rock Wool Sandwich Panels:
  • Model: V950
  • Thickness: 0.3 mm / 50 mm (0.012 inches / 2 inches)
  • Density: 50 kg/m³

10. Pipes

• PVC Pipes:
  • Diameter: 50 mm (2 inches)
  • Length: 2750 mm (108.3 inches) × 4 pieces

11. Ceiling

• Suspension Ceiling:
  • Type: 831 model

12. Edge Trimming

• Corner Trims:
  • 4 pieces

13. Accessories

• Hardware:
  • 1 set of bolts and adhesive

14. Accessories

• Skirting Board:
  • Included

15. Electrical System

• Electrical Components:
  • 1 three-prong outlet
  • 3 five-prong outlets
  • 1 switch distribution box
  • 1 industrial outlet
  • Wiring
  • 2 × 36W LED light strips (wiring concealed within interior walls)
