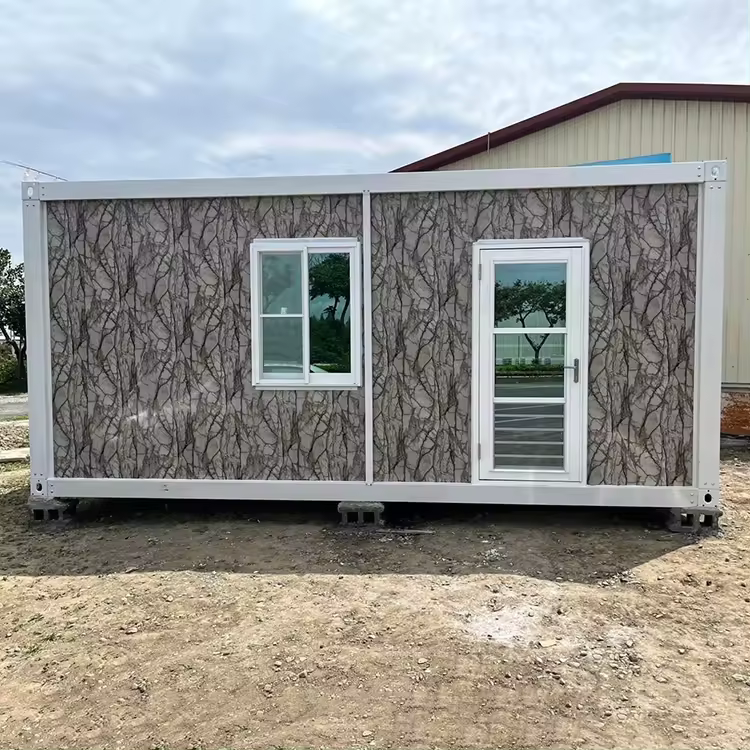

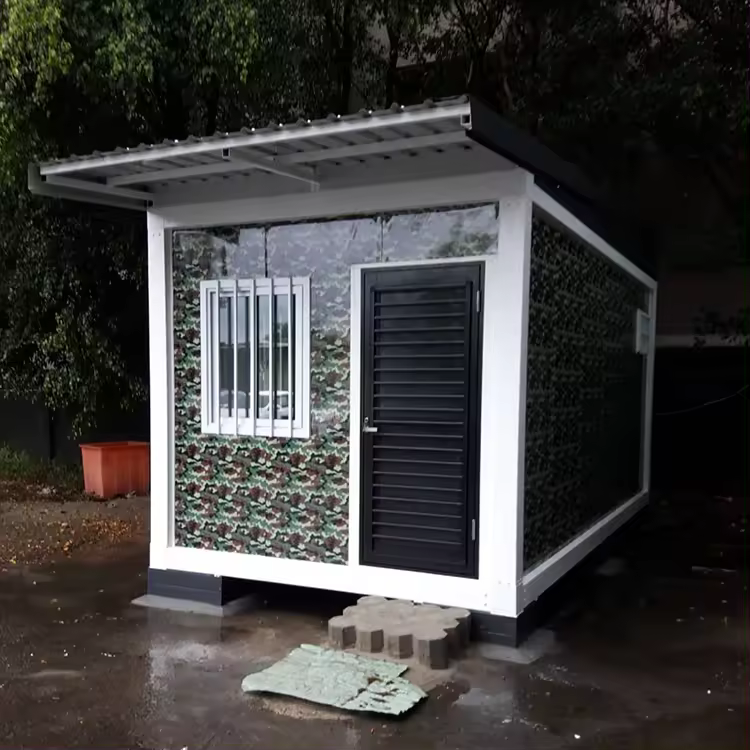

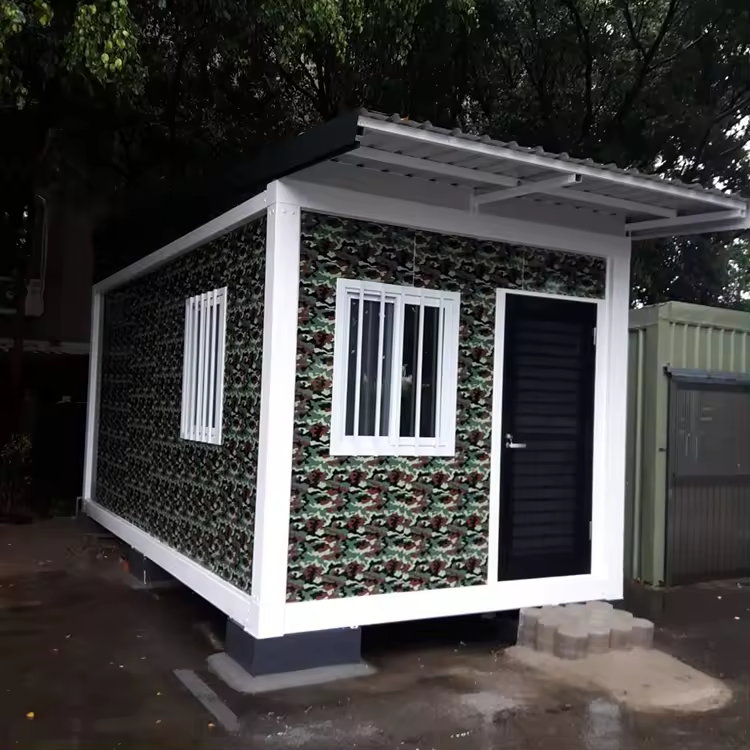

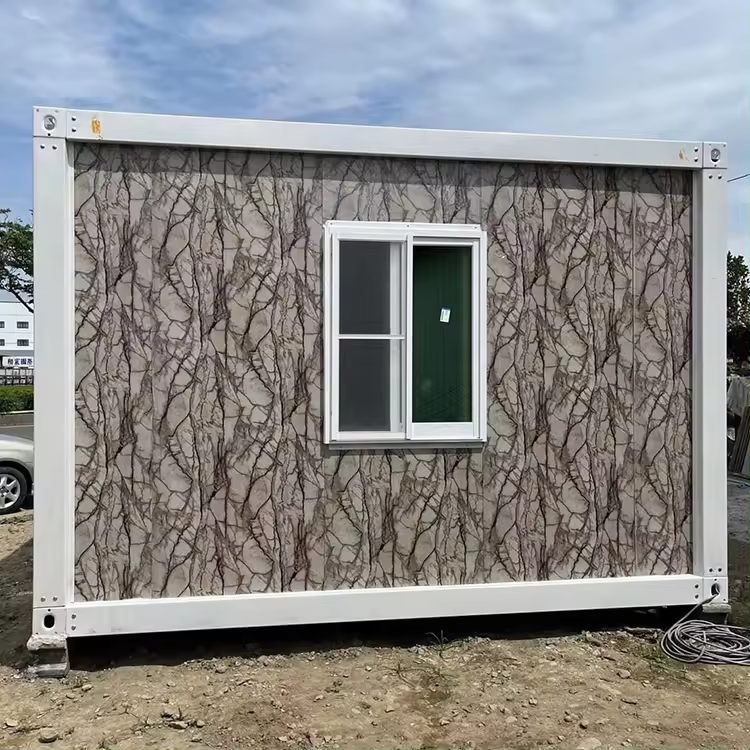

Versatile Modular Structure with Rapid Construction & High Adaptability | Steel & Sandwich Panels

This modular structure is designed for rapid construction, high adaptability, flexible space utilization, and enhanced safety. It combines high-quality steel with robust sandwich panels to ensure durability and functionality. The structure is ideal for a variety of applications, offering a balance between strength and versatility.

• Rapid construction and installation
• High adaptability to various environments
• Flexible space utilization
• Enhanced safety features

1. Top Frame
   • Beams:
     • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
     • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
   • Panels:
     • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
   • Purlins:
     • 80 mm × 40 mm × 1.2 mm (3.15 in × 1.57 in × 0.047 in)
   • Insulation:
     • 18 sqm (193.75 sq ft) of Glass Wool
   • Cladding:
     • 18 sqm (193.75 sq ft) of Painted Steel Sheet (0.45 mm / 0.018 in thick)
2. Bottom Frame
   • Beams:
     • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
     • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
   • Corner Connectors:
     • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
   • Purlins:
     • 9 pieces of 100 mm × 50 mm × 1.2 mm (3.94 in × 1.97 in × 0.047 in)
3. Columns
   • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 in × 5.91 in × 8 ft 3.4 in) with 2.0 mm thickness (0.079 in)
4. Bottom Accessories
   • 50S Trough
5. Floor
   • 5 pieces of 18 mm Cement Fiber Board (0.71 in thick)
6. PVC Flooring
   • 1.6 mm (0.063 in) thick PVC Floor
7. Door
   • Steel Door: 970 mm × 1970 mm (3 ft 2.2 in × 6 ft 5.4 in)
8. Windows
   • PVC Single-Glazed Sliding Windows: 930 mm × 1200 mm (3 ft 0.6 in × 3 ft 11.2 in) × 2
9. Wall Panels
   • Steel Rock Wool Sandwich Panels: V950, 0.3 mm/50 (50 kg/m³)
10. Pipes
    • 4 pieces of 50 mm PVC Pipe, 2750 mm long (2 in × 9 ft 0.2 in)
11. Ceiling
    • Type 831 Suspended Ceiling
12. Edge Trimming
    • 4 pieces of Corner Trimming
13. Accessories
    • 1 set of Bolts and Adhesive
14. Accessories
    • Baseboard
15. Electrical System
    • 1 three-prong socket
    • 3 five-prong sockets
    • 1 switch distribution box
    • 1 industrial socket
    • Electrical wiring
    • 2 LED Light Strips (36W each, integrated into the interior wall corners)
