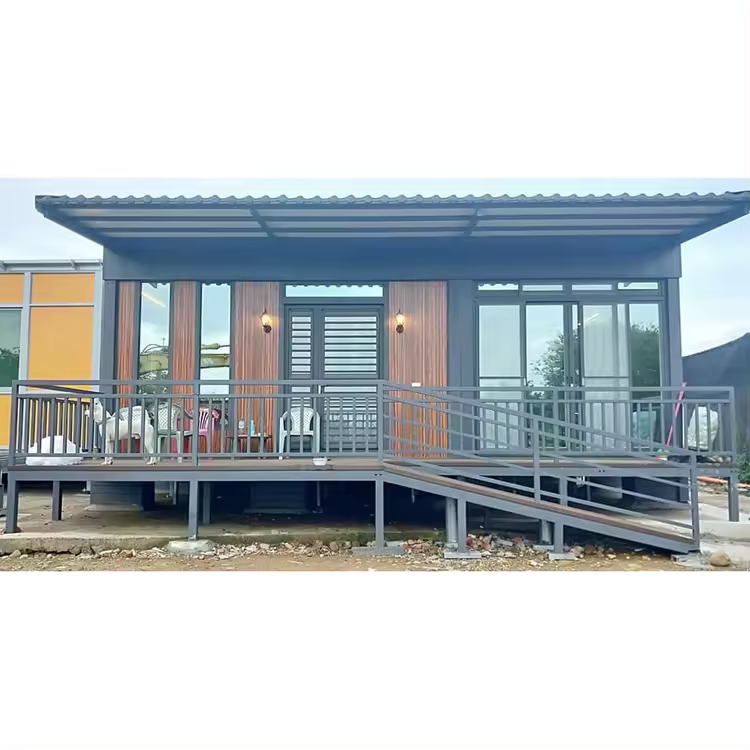

Durable Modular Structure: High-Quality Steel & Panels, Versatile Use

This modular structure is designed for exceptional durability and versatility, combining high-quality steel with robust sandwich panels. It offers a wide range of applications due to its multifunctional design, sturdy construction, and aesthetically pleasing appearance. The structure is built to be reliable and practical, making it suitable for various environments and long-term use.

• Steel
• Steel rock wool sandwich panels

• Durable and multifunctional
• Sturdy construction with an attractive design
• Suitable for a wide range of applications

Detailed Specifications

1. Top Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Panels:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 80 mm × 40 mm × 1.2 mm (3.15 in × 1.57 in × 0.047 in)
• Insulation:
  • 18 m² (193.75 sq ft) of glass wool
• Cladding:
  • 18 m² (193.75 sq ft) of painted steel sheet (0.45 mm / 0.018 in thick)

2. Bottom Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Corner Connectors:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 9 pieces of 100 mm × 50 mm × 1.2 mm (3.94 in × 1.97 in × 0.047 in)

3. Columns

• Columns:
  • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 in × 5.91 in × 8 ft 3.4 in)
  • Thickness: 2.0 mm (0.079 in)

4. Bottom Accessories

• Trough:
  • 50S water trough

5. Floor

• Cement Fiberboard:
  • 5 pieces of 18 mm (0.71 in) thick

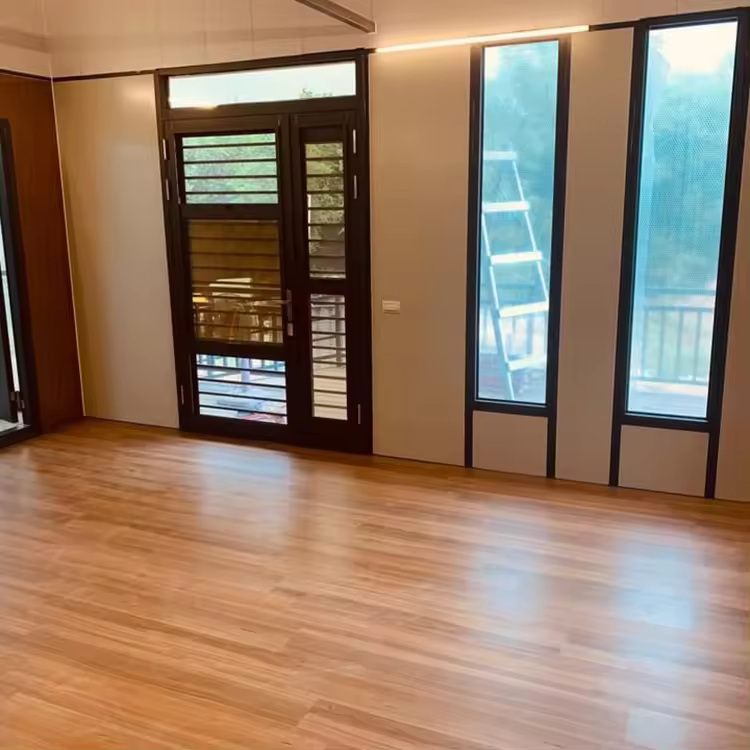

6. PVC Flooring

• Thickness:
  • 1.6 mm (0.063 in)

7. Door

• Steel Door:
  • Size: 970 mm × 1970 mm (3 ft 2.2 in × 6 ft 5.4 in)

8. Windows

• PVC Single-Glazed Sliding Windows:
  • Size: 930 mm × 1200 mm (3 ft 0.6 in × 3 ft 11.2 in) × 2 pieces

9. Wall Panels

• Steel Rock Wool Sandwich Panels:
  • Model: V950
  • Thickness: 0.3 mm / 50 mm (0.012 in / 2 in)
  • Density: 50 kg/m³

10. Pipes

• PVC Pipes:
  • Diameter: 50 mm (2 in)
  • Length: 2750 mm (9 ft 0.2 in) × 4 pieces

11. Ceiling

• Suspension Ceiling:
  • Type: 831 model

12. Edge Trimming

• Corner Trims:
  • 4 pieces

13. Accessories

• Hardware:
  • 1 set of bolts and adhesive

14. Accessories

• Baseboard:
  • Included

15. Electrical System

• Electrical Components:
  • 1 three-prong outlet
  • 3 five-prong outlets
  • 1 switch distribution box
  • 1 industrial outlet
  • Wiring
  • 2 × 36W LED light strips (integrated into the interior wall corners)
