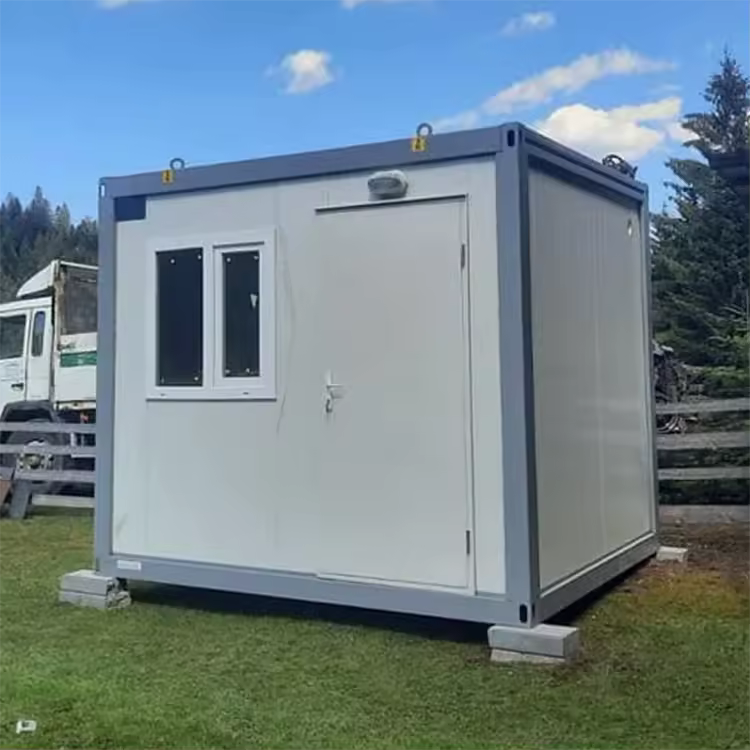

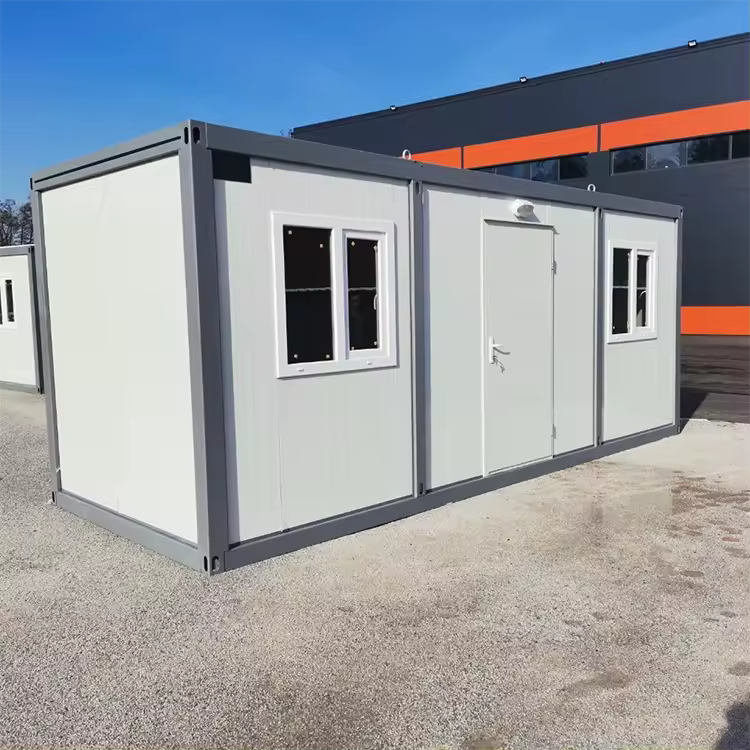

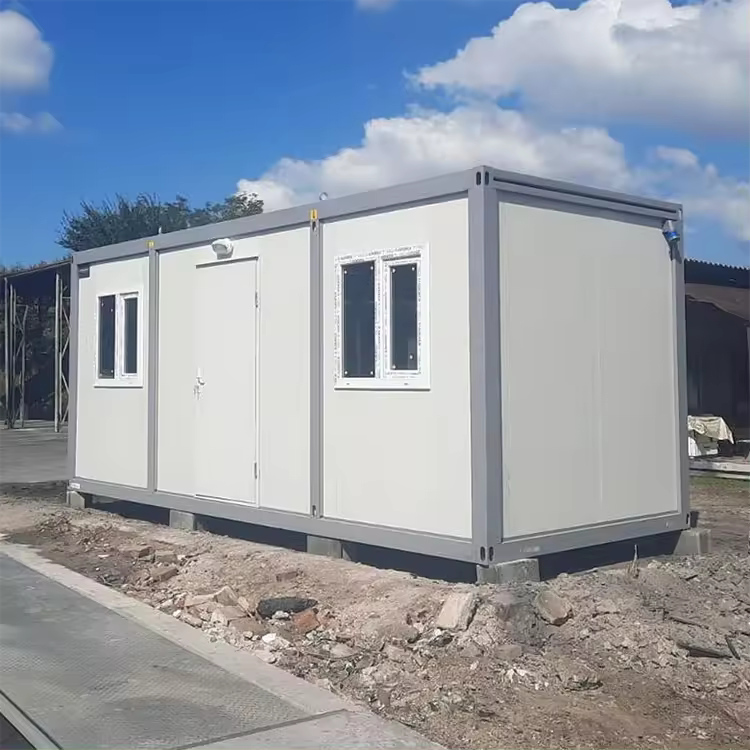

Durable Modular Structure with Flexible Design & Thermal Insulation

This modular structure is designed to offer a versatile and adaptable solution for a wide range of applications, featuring diverse aesthetic options and flexible spatial configurations. Constructed from high-quality steel and advanced sandwich panels, the structure provides durability, thermal insulation, and soundproofing capabilities. Its compact design and robust construction ensure long-term performance with minimal maintenance, making it an ideal choice for modern construction projects that prioritize flexibility and efficiency.

1. Top Frame:
   • Beams:
     • 5530 mm × 2.0 mm (217.7 inches × 0.079 inches) — 2 pieces
     • 2138 mm × 2.0 mm (84.2 inches × 0.079 inches) — 2 pieces
   • Corner Brackets:
     • 210 mm × 150 mm (8.27 inches × 5.91 inches) — 4 pieces
   • Purlins:
     • 80 mm × 40 mm × 1.2 mm (3.15 inches × 1.57 inches × 0.047 inches)
   • Insulation:
     • 18 m² (193.75 ft²) of Glass Wool Insulation
   • Cladding:
     • 18 m² (193.75 ft²) of Pre-painted Steel Sheet, 0.45 mm (0.018 inches) thick
2. Bottom Frame:
   • Beams:
     • 5530 mm × 2.0 mm (217.7 inches × 0.079 inches) — 2 pieces
     • 2138 mm × 2.0 mm (84.2 inches × 0.079 inches) — 2 pieces
   • Corner Connectors:
     • 210 mm × 150 mm (8.27 inches × 5.91 inches) — 4 pieces
   • Purlins:
     • 100 mm × 50 mm × 1.2 mm (3.94 inches × 1.97 inches × 0.047 inches) — 9 pieces
3. Columns:
   • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 inches × 5.91 inches × 99.45 inches), 2.0 mm (0.079 inches) thick
4. Bottom Accessories:
   • 50S Water Trough
5. Floor:
   • 5 pieces of 18 mm (0.71 inches) thick Cement Fiber Board
6. PVC Flooring:
   • 1.6 mm (0.063 inches) thick PVC Flooring
7. Doors:
   • Steel Door: 970 mm × 1970 mm (38.2 inches × 77.6 inches)
8. Windows:
   • PVC Single-Glazed Sliding Windows: 930 mm × 1200 mm (36.6 inches × 47.2 inches) — 2 pieces
9. Wall Panels:
   • Steel Rock Wool Sandwich Panels: V950 Profile, 0.3 mm (0.012 inches) thick steel sheet with 50 mm (1.97 inches) thick Rock Wool Insulation (50 kg/m³)
10. Pipes:
    • 4 pieces of 50 mm (1.97 inches) diameter PVC Pipe, 2750 mm (108.3 inches) long
11. Ceiling:
    • 831 Profile Suspended Ceiling
12. Edge Trimming:
    • 4 Corner Trims
13. Accessories:
    • 1 Set of Bolts and Adhesive
14. Baseboard:
    • Kick Plate
15. Electrical System:
    • 1 Three-Prong Socket
    • 3 Five-Prong Sockets
    • 1 Switch Distribution Box
    • 1 Industrial Socket
    • Electrical Wiring
    • 2 × 36W LED Light Strips (Wiring Concealed in Interior Wall Corners)

• Diverse aesthetic options and flexible spatial configurations
• High-quality steel and advanced sandwich panel construction for durability
• Thermal insulation and soundproofing capabilities
• Suitable for a wide range of applications, including industrial, commercial, and residential use
• Comprehensive electrical system and modern finishing options
