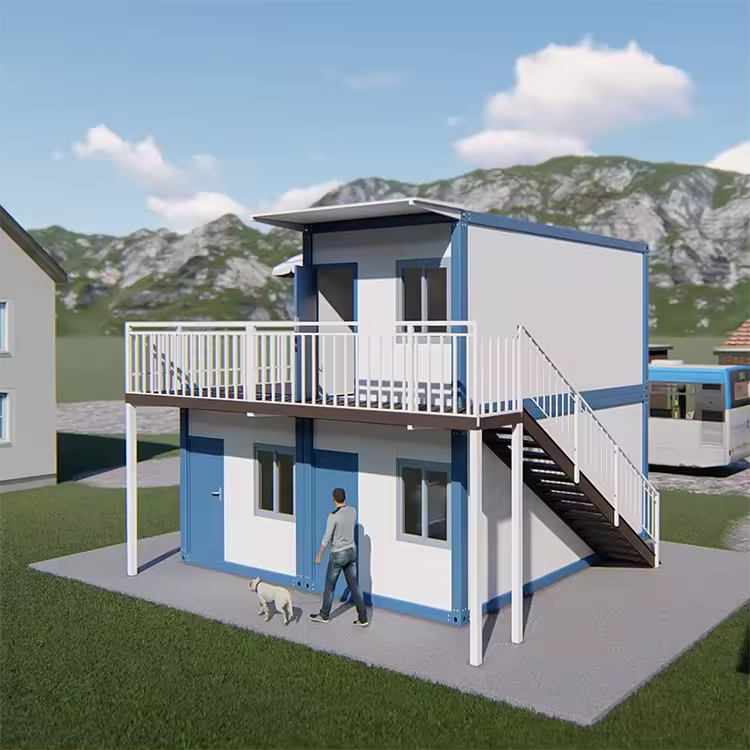

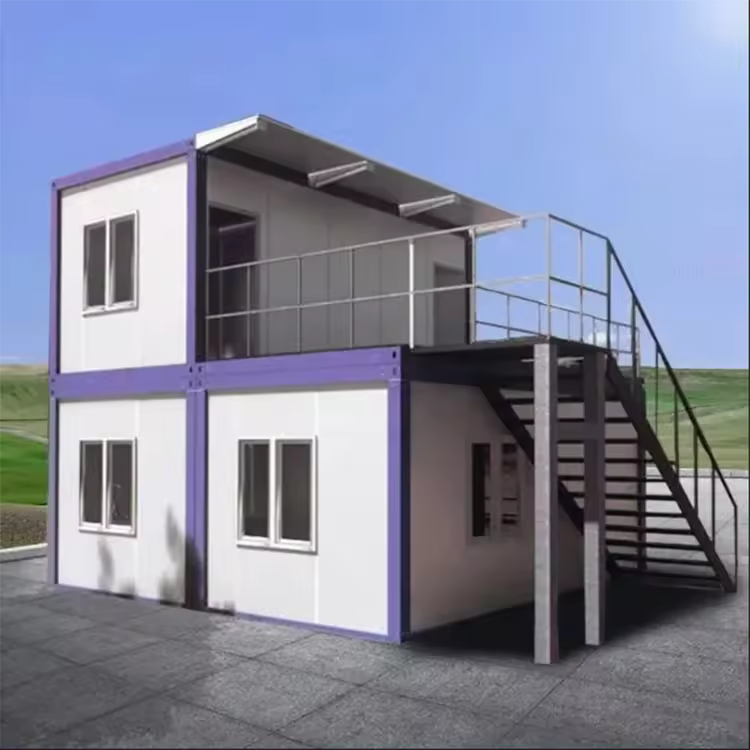

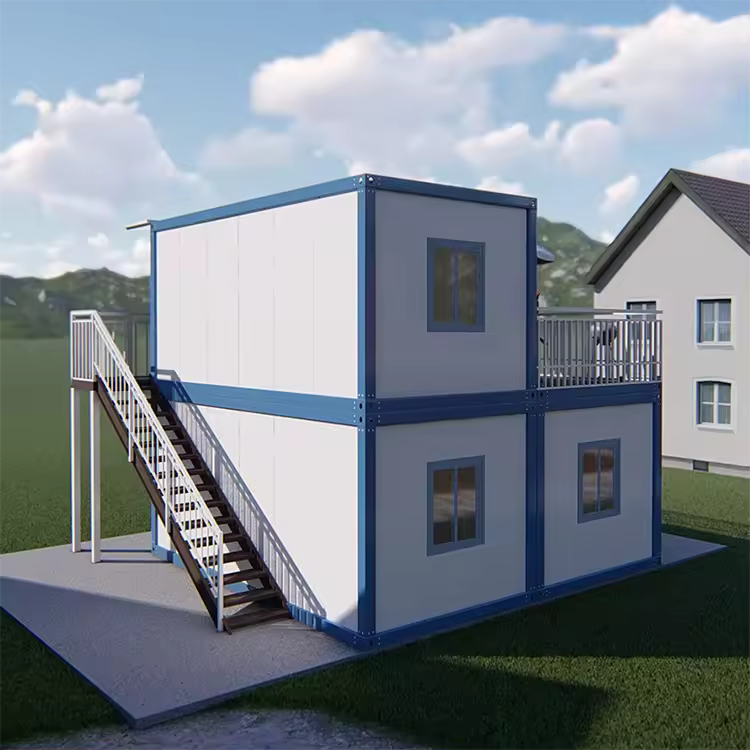

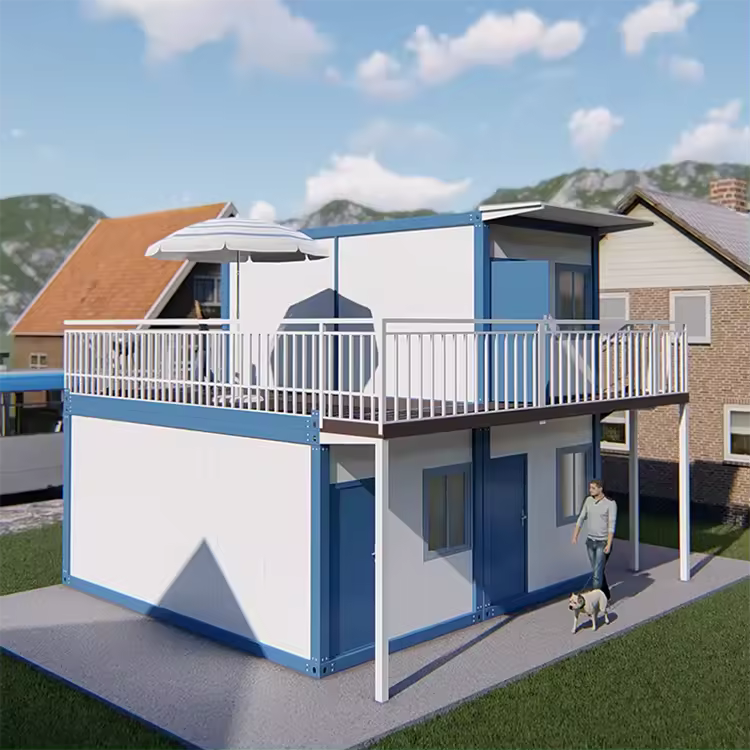

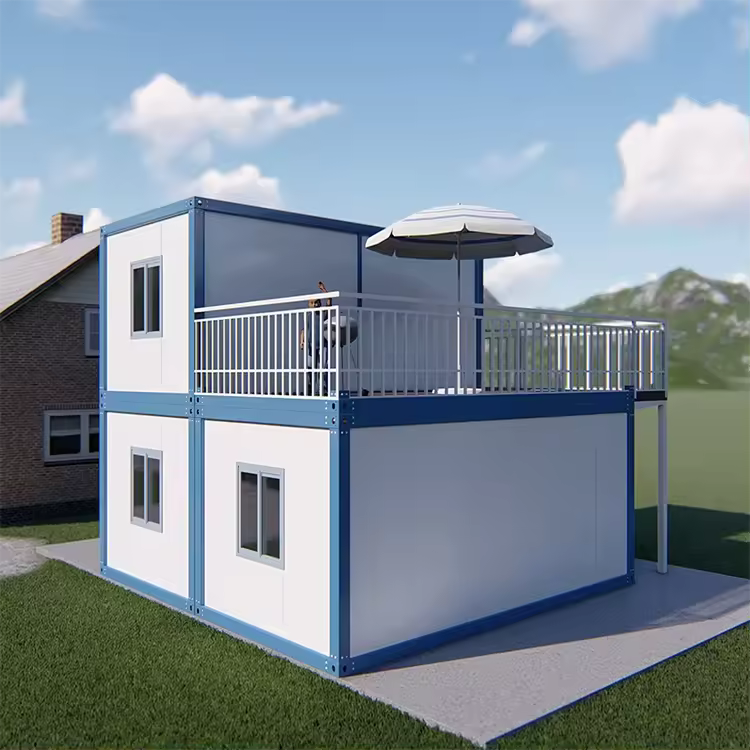

Versatile Modular Structure: Reusable, Durable & Sustainable Construction Solution

This modular structure is designed to provide a highly versatile and adaptable solution for a wide range of applications. With its reusable components and diverse aesthetic options, it offers a sustainable and cost-effective alternative to traditional construction methods. The structure is engineered for maximum flexibility, allowing for easy transportation and reconfiguration to meet changing spatial needs. Whether used in industrial, commercial, or residential settings, this modular unit combines high-quality steel and advanced sandwich panels to deliver durability, thermal insulation, and soundproofing capabilities. Its compact design and robust construction ensure long-term performance with minimal maintenance, making it an ideal choice for modern construction projects that prioritize efficiency, sustainability, and adaptability.

1. Top Frame:
   • Beams:
     • 5530 mm × 2.0 mm (217.7 inches × 0.079 inches) — 2 pieces
     • 2138 mm × 2.0 mm (84.2 inches × 0.079 inches) — 2 pieces
   • Corner Brackets:
     • 210 mm × 150 mm (8.27 inches × 5.91 inches) — 4 pieces
   • Purlins:
     • 80 mm × 40 mm × 1.2 mm (3.15 inches × 1.57 inches × 0.047 inches)
   • Insulation:
     • 18 m² (193.75 ft²) of Glass Wool Insulation
   • Cladding:
     • 18 m² (193.75 ft²) of Pre-painted Steel Sheet, 0.45 mm (0.018 inches) thick
2. Bottom Frame:
   • Beams:
     • 5530 mm × 2.0 mm (217.7 inches × 0.079 inches) — 2 pieces
     • 2138 mm × 2.0 mm (84.2 inches × 0.079 inches) — 2 pieces
   • Corner Connectors:
     • 210 mm × 150 mm (8.27 inches × 5.91 inches) — 4 pieces
   • Purlins:
     • 100 mm × 50 mm × 1.2 mm (3.94 inches × 1.97 inches × 0.047 inches) — 9 pieces
3. Columns:
   • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 inches × 5.91 inches × 99.45 inches), 2.0 mm (0.079 inches) thick
4. Bottom Accessories:
   • 50S Water Trough
5. Floor:
   • 5 pieces of 18 mm (0.71 inches) thick Cement Fiber Board
6. PVC Flooring:
   • 1.6 mm (0.063 inches) thick PVC Flooring
7. Doors:
   • Steel Door: 970 mm × 1970 mm (38.2 inches × 77.6 inches)
8. Windows:
   • PVC Single-Glazed Sliding Windows: 930 mm × 1200 mm (36.6 inches × 47.2 inches) — 2 pieces
9. Wall Panels:
   • Steel Rock Wool Sandwich Panels: V950 Profile, 0.3 mm (0.012 inches) thick steel sheet with 50 mm (1.97 inches) thick Rock Wool Insulation (50 kg/m³)
10. Pipes:
    • 4 pieces of 50 mm (1.97 inches) diameter PVC Pipe, 2750 mm (108.3 inches) long
11. Ceiling:
    • 831 Profile Suspended Ceiling
12. Edge Trimming:
    • 4 Corner Trims
13. Accessories:
    • 1 Set of Bolts and Adhesive
14. Baseboard:
    • Kick Plate
15. Electrical System:
    • 1 Three-Prong Socket
    • 3 Five-Prong Sockets
    • 1 Switch Distribution Box
    • 1 Industrial Socket
    • Electrical Wiring
    • 2 × 36W LED Light Strips (Wiring Concealed in Interior Wall Corners)

• Reusable design with diverse aesthetic options
• High-quality steel and advanced sandwich panel construction for durability
• Easy transportation and flexible spatial configuration
• Suitable for a wide range of applications, including industrial, commercial, and residential use
• Comprehensive electrical system and modern finishing options
