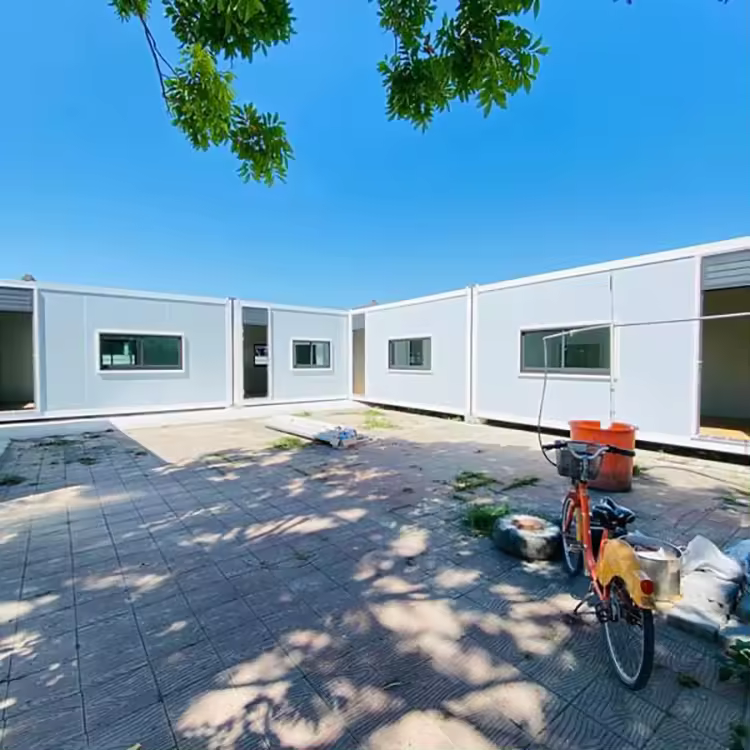

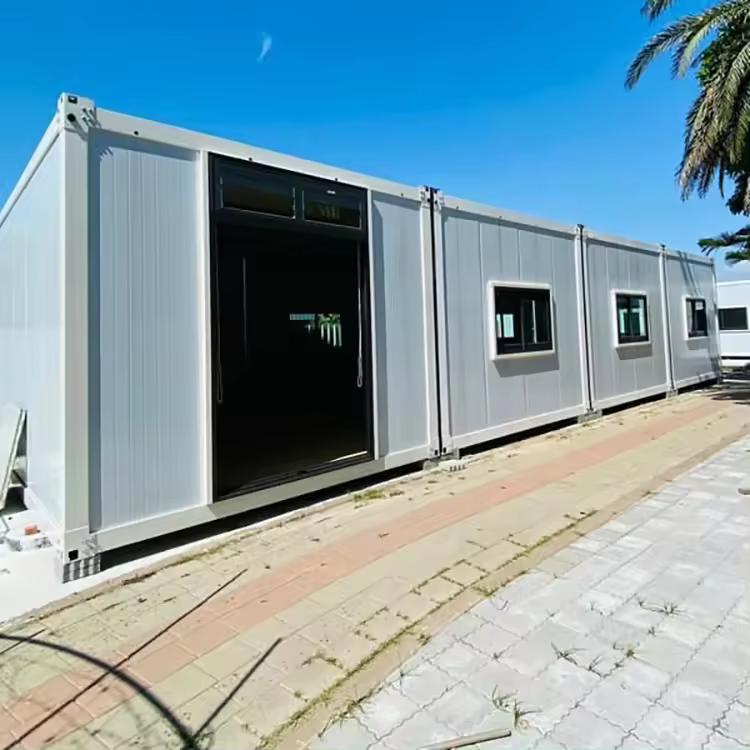

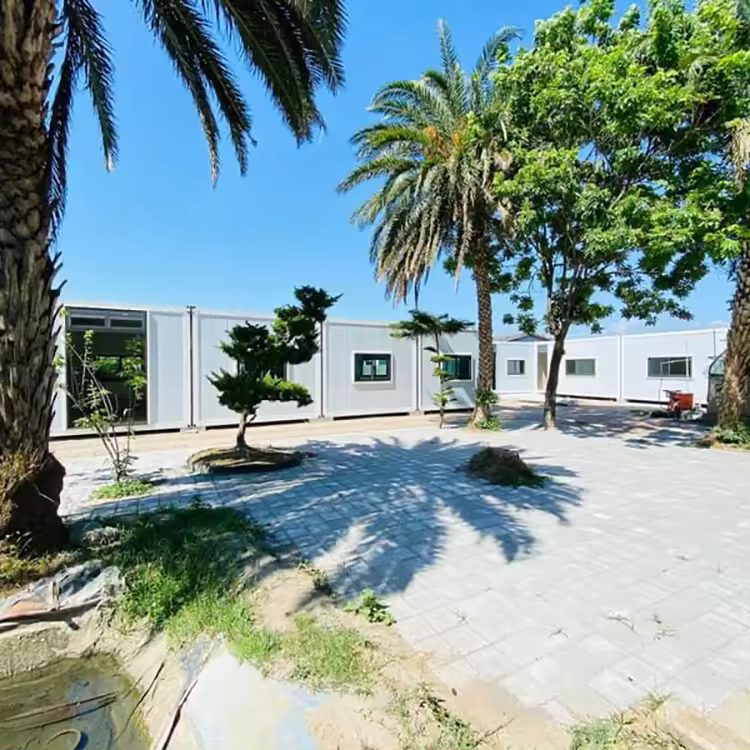

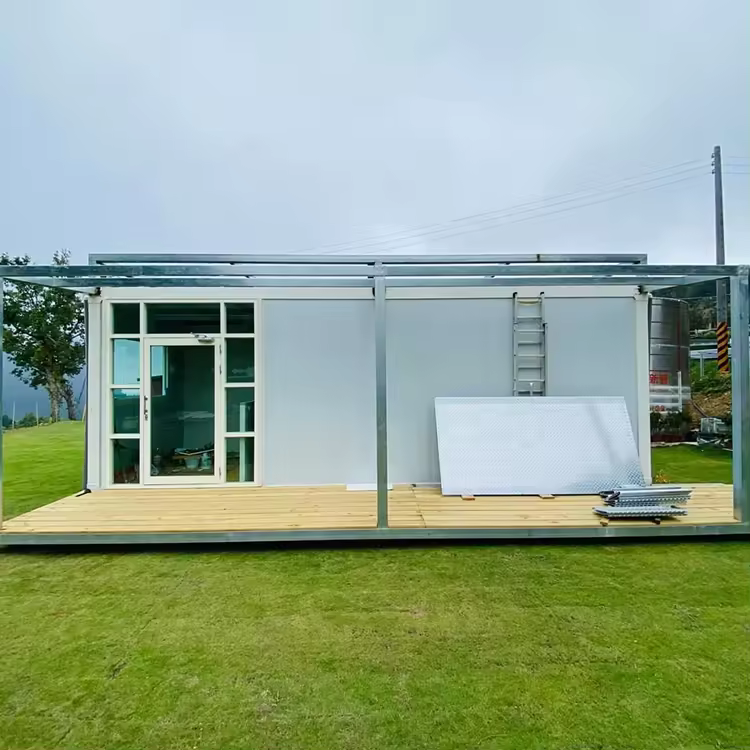

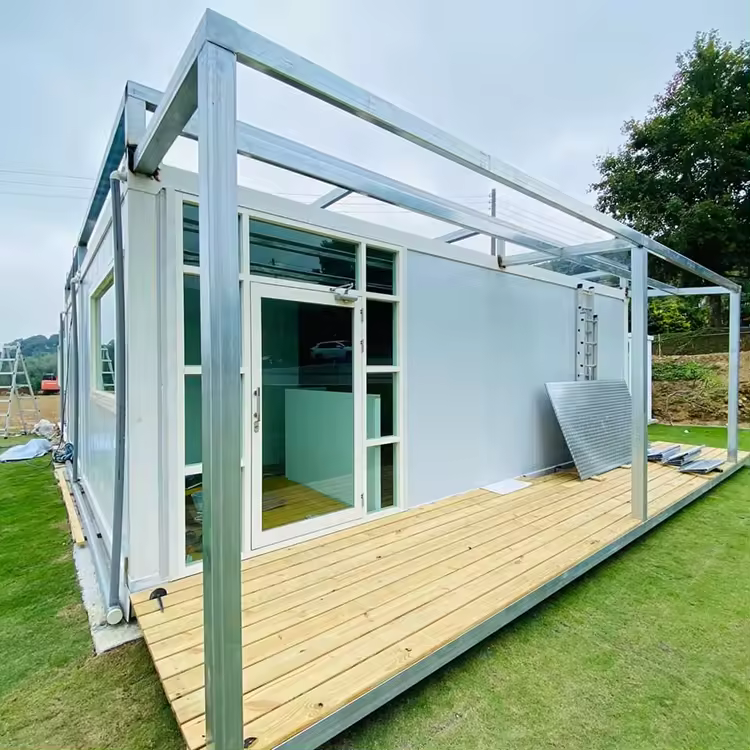

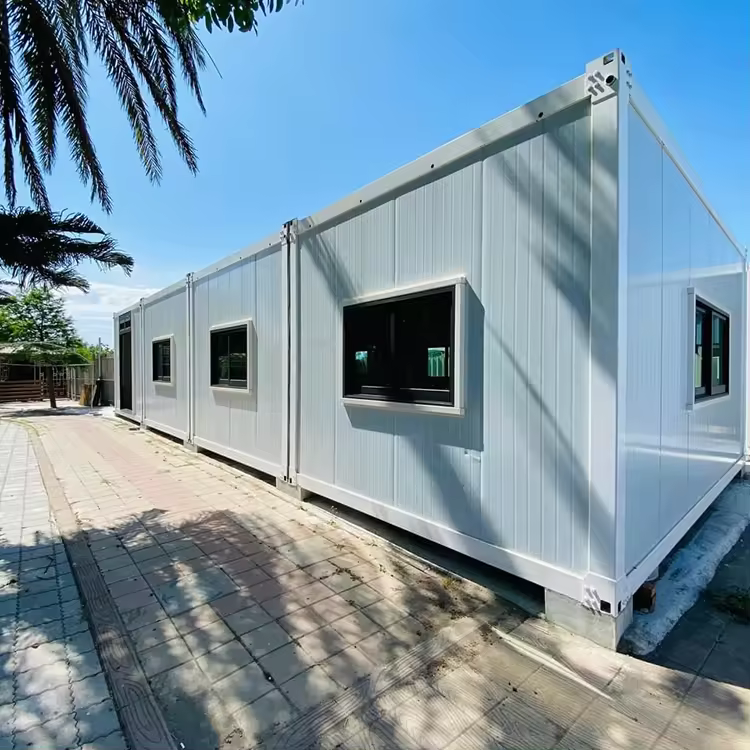

Durable Steel and Sandwich Panel Structure: Waterproof, Insulated, and Built to Last 30 Years

Our product is a high-quality, durable structure designed for versatile applications. It features a robust construction with steel and sandwich panels, ensuring excellent waterproofing, sound insulation, thermal insulation, and environmental protection. The design allows for easy mobility, transportation, and cleaning with water. With an expected lifespan of 30 years, this product is built to last.

This product is designed to meet high standards of durability, functionality, and environmental sustainability, making it suitable for a wide range of applications.

Dimensions:

Length: 2990 mm (117.7 inches)

Width: 6055 mm (238.4 inches)

Height: 2896 mm (114 inches)

 Components and Specifications

1. Top Frame

– Beams:

  – 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces

  – 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces

– Purlins:

  – 80 mm × 40 mm × 1.2 mm (3.1 inches × 1.6 inches × 0.05 inches)

– Insulation:

  – 18 m² (193.75 sq ft) of glass wool

  – 18 m² (193.75 sq ft) of painted steel sheet (thickness: 0.45 mm / 0.018 inches)

 2. Bottom Frame

– Beams:

  – 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces

  – 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces

– Corner Connectors:

  – 210 mm × 150 mm (8.3 inches × 5.9 inches) × 4 pieces

– Purlins:

  – 100 mm × 50 mm × 1.2 mm (3.9 inches × 2 inches × 0.05 inches) × 9 pieces

 3. Columns

– 4 columns:

  – 210 mm × 150 mm × 2526 mm (8.3 inches × 5.9 inches × 99.4 inches)

  – Thickness: 2.0 mm (0.08 inches)

 4. Bottom Accessories

– 50S Trough

 5. Floor

– 5 pieces of 18 mm (0.7 inches) cement fiberboard

 6. PVC Flooring

– Thickness: 1.6 mm (0.06 inches)

 7. Door

– Steel door:

  – Size: 970 mm × 1970 mm (38.2 inches × 77.6 inches)

8. Windows

– PVC single-glazed sliding windows:

  – Size: 930 mm × 1200 mm (36.6 inches × 47.2 inches) × 2 pieces

 9. Wall Panels

– Steel rock wool sandwich panels:

  – Model: V950

  – Thickness: 0.3 mm / 50 (50 kg/m³)

 10. Pipes

– 4 pieces of 50 mm (2 inches) PVC pipe, length: 2750 mm (108.3 inches)

11. Ceiling

– 831 type suspended ceiling

 12. Edge Trimming

– 4 corner trims

13. Accessories

– 1 set of bolts and adhesive

 14. Accessories

– Skirting board

 15. Electrical System

– 1 three-prong outlet

– 3 five-prong outlets

– 1 switch distribution box

– 1 industrial outlet

– Wiring

– 2 × 36W light strips (wiring concealed within interior walls)
