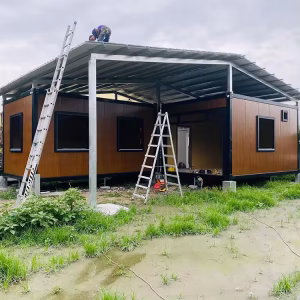

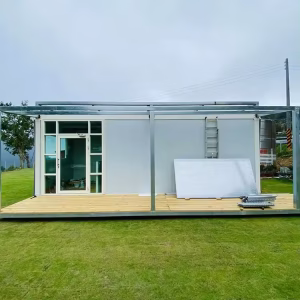

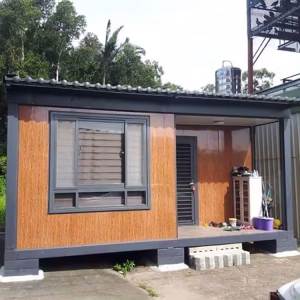

30-Year Modular Structure: Durable, Adaptable, and Aesthetically Designed

This modular structure is designed for exceptional durability and versatility, featuring a robust construction with steel and sandwich panels. The design allows for easy assembly and disassembly, making it highly adaptable to various environments and applications. With a lifespan of up to 30 years, this structure offers excellent stability, ease of mobility, and transportability. It is also designed for easy cleaning with water, ensuring long-term reliability and low maintenance. The structure is aesthetically pleasing, making it suitable for both functional and decorative purposes.

• Steel
• Sandwich panels (steel rock wool sandwich panels)

• Easy to assemble and disassemble
• Convenient for transportation and mobility
• Suitable for various environments
• Long-lasting stability
• Aesthetic design

Components and Specifications

1. Top Frame

• Beams:
  • 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces
  • 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces
• Corner Brackets:
  • 210 mm × 150 mm (8.3 inches × 5.9 inches) × 4 pieces
• Purlins:
  • 80 mm × 40 mm × 1.2 mm (3.1 inches × 1.6 inches × 0.05 inches)
• Insulation:
  • 18 m² (193.75 sq ft) of glass wool
  • 18 m² (193.75 sq ft) of painted steel sheet (thickness: 0.45 mm / 0.018 inches)

2. Bottom Frame

• Beams:
  • 5530 mm × 2.0 mm (217.7 inches × 0.08 inches) × 2 pieces
  • 2138 mm × 2.0 mm (84.2 inches × 0.08 inches) × 2 pieces
• Corner Connectors:
  • 210 mm × 150 mm (8.3 inches × 5.9 inches) × 4 pieces
• Purlins:
  • 100 mm × 50 mm × 1.2 mm (3.9 inches × 2 inches × 0.05 inches) × 9 pieces

3. Columns

• Columns:
  • 210 mm × 150 mm × 2526 mm (8.3 inches × 5.9 inches × 99.4 inches) × 4 pieces
  • Thickness: 2.0 mm (0.08 inches)

4. Bottom Accessories

• Trough:
  • 50S water trough

5. Floor

• Cement Fiberboard:
  • 18 mm (0.7 inches) thick × 5 pieces

6. PVC Flooring

• Thickness:
  • 1.6 mm (0.06 inches)

7. Door

• Steel Door:
  • Size: 970 mm × 1970 mm (38.2 inches × 77.6 inches)

8. Windows

• PVC Single-Glazed Sliding Windows:
  • Size: 930 mm × 1200 mm (36.6 inches × 47.2 inches) × 2 pieces

9. Wall Panels

• Steel Rock Wool Sandwich Panels:
  • Model: V950
  • Thickness: 0.3 mm / 50 mm (0.012 inches / 2 inches)
  • Density: 50 kg/m³

10. Pipes

• PVC Pipes:
  • Diameter: 50 mm (2 inches)
  • Length: 2750 mm (108.3 inches) × 4 pieces

11. Ceiling

• Suspension Ceiling:
  • Type: 831 model

12. Edge Trimming

• Corner Trims:
  • 4 pieces

13. Accessories

• Hardware:
  • 1 set of bolts and adhesive

14. Accessories

• Skirting Board:
  • Included

15. Electrical System

• Electrical Components:
  • 1 three-prong outlet
  • 3 five-prong outlets
  • 1 switch distribution box
  • 1 industrial outlet
  • Wiring
  • 2 × 36W LED light strips (wiring concealed within interior walls)
