Expandable Modular Home: Flexible, Eco-Friendly & Built to Last

$5,000.00

SKU: KZZ-021 Category: Uncategorized

Description
Reviews (0)

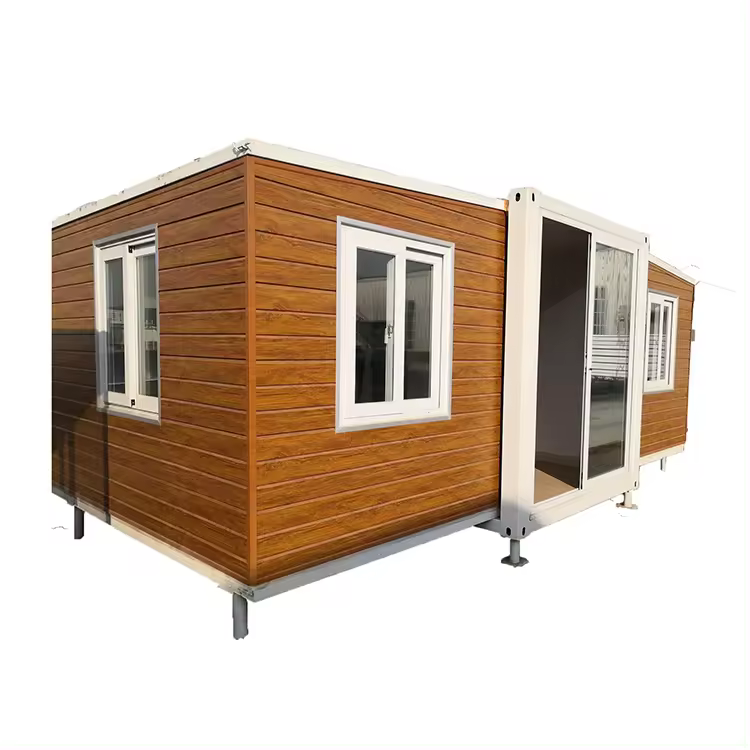

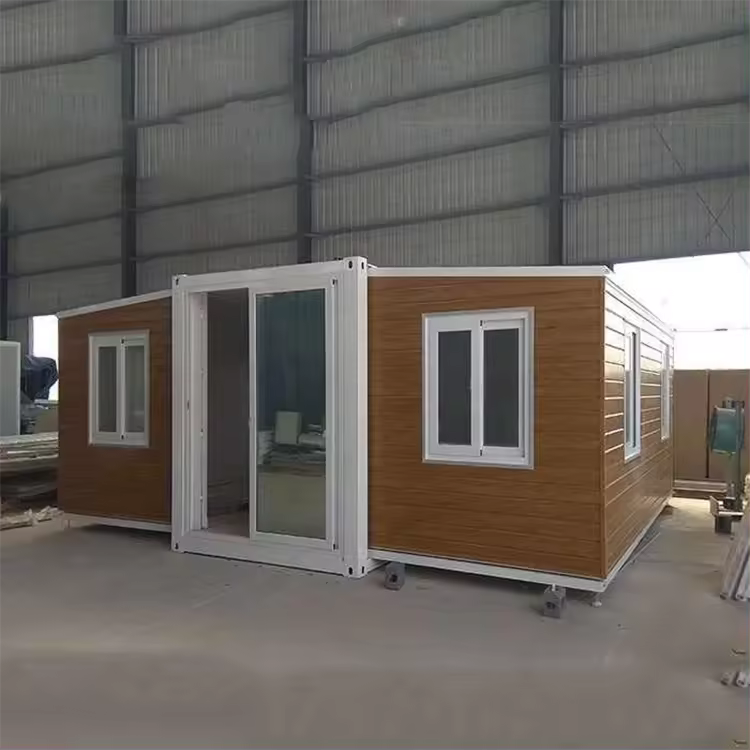

Introducing the Expandable Modular Home: a cutting-edge, versatile solution designed for modern living and working environments. This modular structure offers unparalleled flexibility and durability, making it an ideal choice for those seeking a reliable and adaptable space. Constructed from high-quality materials such as 2.5mm Q235B steel and EPS sandwich panels, this modular home ensures long-term performance with minimal maintenance.

Dimensions:
External Dimensions: 6400 mm (21 ft 0 in) × 11600 mm (38 ft 0.6 in) × 2480 mm (8 ft 1.6 in)
Internal Dimensions: 6280 mm (20 ft 7.2 in) × 11200 mm (36 ft 9.1 in) × 2280 mm (7 ft 5.9 in) (Lower Side: 2150 mm)
Folded Dimensions: 2160 mm (7 ft 1 in) × 11600 mm (38 ft 0.6 in) × 2480 mm (8 ft 1.6 in)
Total Weight: 4800 kg (10,582 lbs)

Components:

Structure:
- Top Side Beams: 2.5 mm Q235B steel
- Bottom Side Beams: 2.5 mm Q235B steel
- End Side Beams: 2.5 mm Q235B steel
- Side Wall Frame: 2.5 mm Q235B steel
- Subframe: 2.5 mm Q235B steel
- Hangers: t4 mm Q235B steel
- Folding Hinges: 13 mm galvanized steel
- Protective Coating: Electrostatic powder coating/straight white powder
- Middle Cabinet Top and Bottom: 80 mm × 100 mm × 2.5 mm thick pipe
- Side Cabinet Top and Bottom: 40 mm × 60 mm × 1.7 mm thick pipe
Roof:
- External Roof: t0.5 mm galvanized steel sheet
- Indoor Ceiling: t0.3 mm 831 profile ceiling tiles
Panels:
- Roof Insulation: 50 mm EPS sandwich panels
- Side Front and Rear Wall Panels: 75 mm EPS sandwich panels
- Internal Partitions: 50 mm EPS sandwich panels
Floor:
- Middle Layer: Magnesium oxide board or cement fiber board
- Side Flooring: Bamboo flooring
Electrical System:
- Electrical wiring strictly follows moisture-proof standards, with all electrical products certified to CE standards.
- Indoor: 3 LED lights, 3 five-prong single switches, 3 ten-prong sockets, 3 air conditioner sockets, 1 20A circuit breaker.
- Voltage: 220V, 50Hz
Doors and Windows:
- Doors: Aluminum alloy glass doors
- Windows: Aluminum windows
Warranty:
- 1-year warranty

Product Features:

Highly Expandable and Flexible Space: Easily customized to meet growing needs.
Diverse and Attractive Appearance: Available in a variety of exterior options to suit any style.
Soundproof and Insulated: Designed to provide excellent acoustic and thermal performance.

Applications:

Temporary or Permanent Housing: Ideal for residential use, whether for short-term stays or long-term living.
Construction Site Offices: Provides a comfortable and functional workspace on-site.
Remote Workspaces: Perfect for creating dedicated work areas in remote locations.
Modular Classrooms: Transforms education with flexible and durable learning spaces.
Emergency Shelters: Quickly deployable and reliable, making them ideal for disaster relief efforts.

Why Choose Our Expandable Modular Home?

Our Expandable Modular Home is designed to adapt to your evolving needs with ease. Engineered with premium materials, it ensures low maintenance and exceptional durability. Whether you need a temporary setup or a permanent home, this modular structure offers flexibility, safety, and sustainability. Choose it for a future-proof solution that fits your lifestyle.
