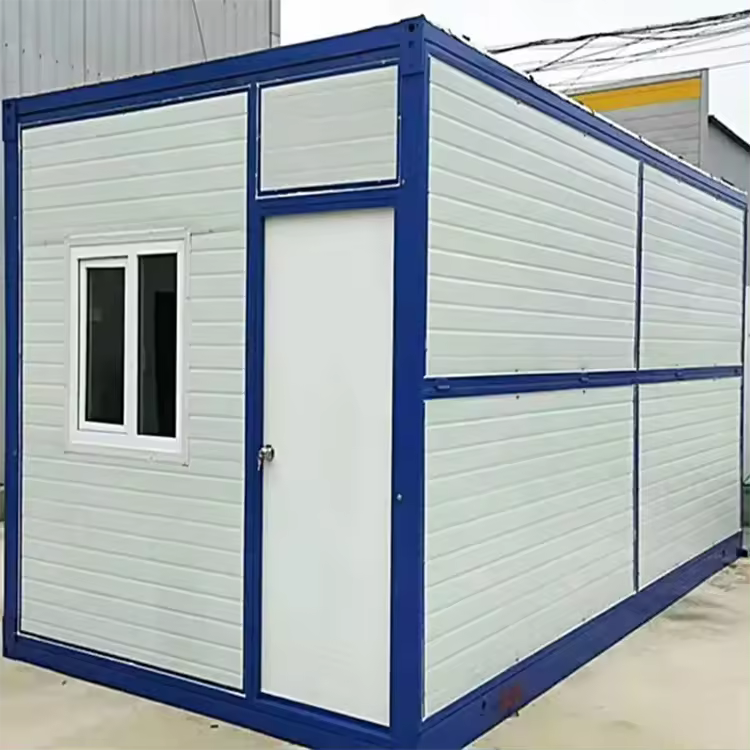

Foldable Container House: Redefine Your Space with Innovative Modular Living

The Foldable Container House is a cutting-edge solution designed to redefine the boundaries of modular living and working spaces. This versatile structure combines robust construction with a sleek, modern design, making it ideal for a wide range of applications—from temporary accommodation and remote workspaces to emergency shelters. Whether you need a quick setup on a construction site or a stylish, portable living solution, the Foldable Container House offers unmatched convenience and performance.

• External Dimensions: 5800mm (L) × 2500mm (W) × 2450mm (H) / 19ft (L) × 8.2ft (W) × 8.0ft (H)
• Internal Dimensions: 5650mm (L) × 2350mm (W) × 2230mm (H) / 18.5ft (L) × 7.7ft (W) × 7.3ft (H)
• Folded Dimensions: 5800mm (L) × 2500mm (W) × 440mm (H) / 19ft (L) × 8.2ft (W) × 1.4ft (H)
• Weight: 1.3T / 2866 lbs

• Top Beam: Galvanized steel channel, 63mm × 80mm × 1.5mm (2.5″ × 3.1″ × 0.06″) (both sides)
• Bottom Beam: Galvanized steel channel, 63mm × 160mm × 2.0mm (2.5″ × 6.3″ × 0.08″) (both sides)
• Side Wall Frame: Galvanized steel channel, 63mm × 80mm × 1.5mm (2.5″ × 3.1″ × 0.06″) (both sides)
• Front and Rear Beams: Galvanized steel channel, 63mm × 80mm × 1.5mm (2.5″ × 3.1″ × 0.06″) (double-sided)
• Cross Beams: Galvanized square steel tube, 40mm × 80mm × 2.0mm (1.6″ × 3.1″ × 0.08″)
• Cast Steel Corner Joints: Steel plate, 200mm × 100mm × 15mm (7.9″ × 3.9″ × 0.6″)
• Folding Hinges: Galvanized hinge, 85mm × 115mm × 3mm (3.3″ × 4.5″ × 0.1″) with 304 stainless steel pivot
• Protective Coating: High-gloss enamel for enhanced durability and aesthetic appeal

• External Roof: 104-colored steel tiles, 0.5mm thickness
• Internal Ceiling: 831 ceiling material, 0.326mm thickness
• Insulation: Rock wool with a density of 60kg/m³, covering 14.5 sqm
• Flooring: A-grade fire-resistant glass magnesium board, 15mm (0.59″) thick

• Side Walls: Insulated sandwich panels with 0.326mm steel cladding and 50mm rock wool insulation (density 65kg/m³)
• Front and Rear Walls: Insulated sandwich panels with 0.326mm steel cladding and 50mm rock wool insulation (density 65kg/m³)

• Window: Aluminum alloy anti-theft sliding window with screen, 950mm × 1200mm (37.4″ × 47.2″)
• Door: Folding container-specific anti-theft door, 860mm × 1980mm (33.9″ × 78″)

• Roof Load: ≥50kg/m² (≥10.2 lbs/sqft)
• Floor Load: ≥150kg/m² (≥30.5 lbs/sqft)
• Passageway Load: ≥200kg/m² (≥40.7 lbs/sqft)
• Side Wall Pressure: ≥80kg/m² (≥16.2 lbs/sqft)

• Fire Resistance: Fireproof
• Wall Deformation Coefficient: ≤300kg/m² (≤61.4 lbs/sqft)
• Seismic Resistance: Grade 10
• Wind Resistance: Grade 11

• Aesthetic Appeal: Available in multiple colors and finishes, ensuring a visually appealing design that doesn’t fade.
• Durability: High-gloss enamel coating provides long-lasting protection against wear and corrosion.
• Ease of Use: Simple installation and dismantling process, making it easy to set up and move as needed.
• Performance: Waterproof, soundproof, thermally insulated, and environmentally friendly, ensuring comfort and sustainability.
