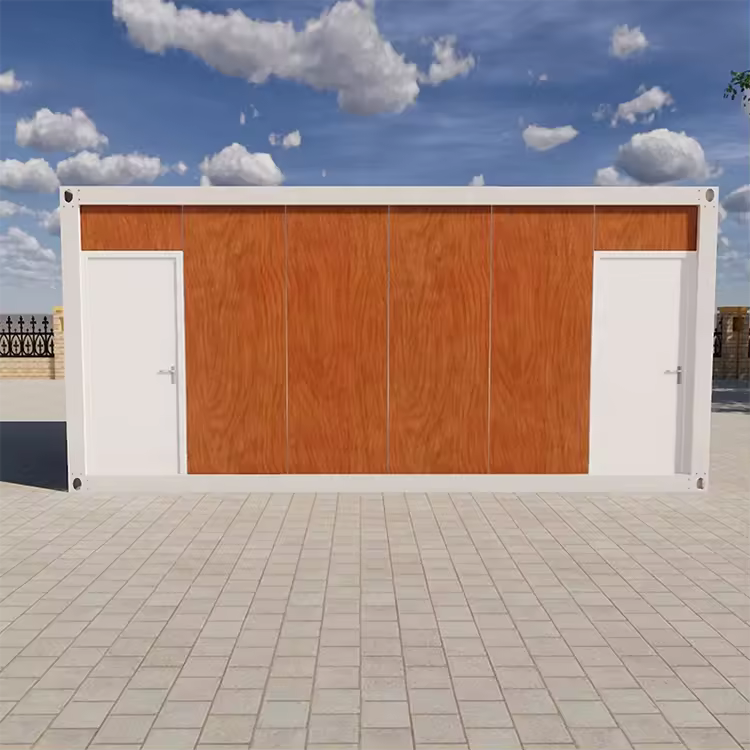

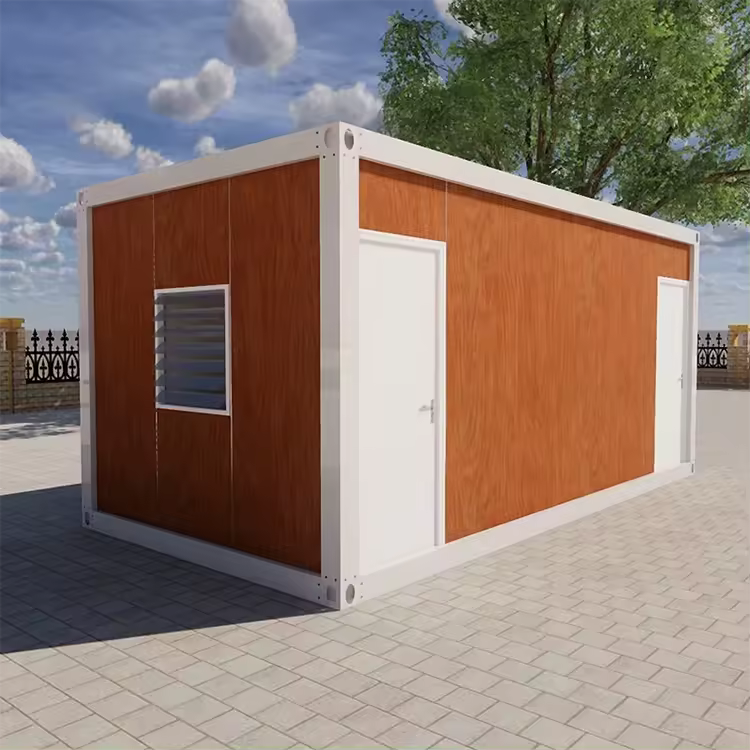

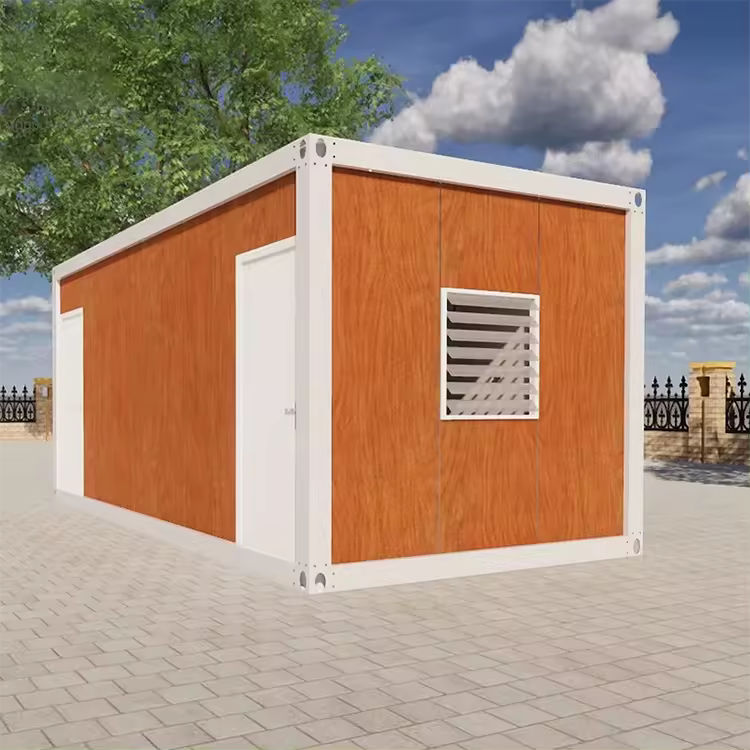

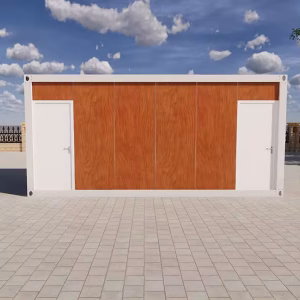

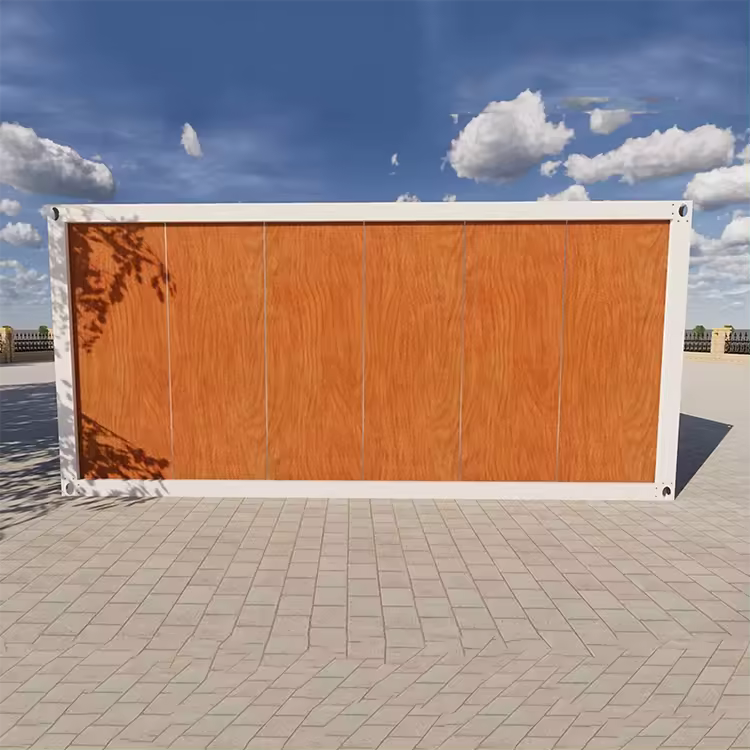

Thermal-Insulated Modular Building: Durable, Versatile, and Easy to Transport

This modular building is meticulously designed to offer superior thermal insulation, heat resistance, and durability, making it an ideal solution for a wide range of applications. Constructed with high-quality steel and robust steel rock wool sandwich panels, the structure is engineered to provide long-term stability and reliability. Its design emphasizes ease of transportation and flexible space utilization, ensuring that the building can be quickly and efficiently deployed in various environments. Whether used for commercial, industrial, or residential purposes, this modular building provides a versatile, durable, and adaptable solution that meets the highest standards of quality and performance.

• Steel
• Steel rock wool sandwich panels

• Superior thermal insulation and heat resistance
• Durable and long-lasting construction
• Easy to transport and offers flexible space utilization
• Suitable for a wide range of applications

Detailed Specifications

1. Top Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Panels:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 80 mm × 40 mm × 1.2 mm (3.15 in × 1.57 in × 0.047 in)
• Insulation:
  • 18 m² (193.75 sq ft) of glass wool
• Cladding:
  • 18 m² (193.75 sq ft) of painted steel sheet (0.45 mm / 0.018 in thick)

2. Bottom Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Corner Connectors:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 9 pieces of 100 mm × 50 mm × 1.2 mm (3.94 in × 1.97 in × 0.047 in)

3. Columns

• Columns:
  • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 in × 5.91 in × 8 ft 3.4 in)
  • Thickness: 2.0 mm (0.079 in)

4. Bottom Accessories

• Trough:
  • 50S water trough

5. Floor

• Cement Fiberboard:
  • 5 pieces of 18 mm (0.71 in) thick

6. PVC Flooring

• Thickness:
  • 1.6 mm (0.063 in)

7. Door

• Steel Door:
  • Size: 970 mm × 1970 mm (3 ft 2.2 in × 6 ft 5.4 in)

8. Windows

• PVC Single-Glazed Sliding Windows:
  • Size: 930 mm × 1200 mm (3 ft 0.6 in × 3 ft 11.2 in) × 2 pieces

9. Wall Panels

• Steel Rock Wool Sandwich Panels:
  • Model: V950
  • Thickness: 0.3 mm / 50 mm (0.012 in / 2 in)
  • Density: 50 kg/m³

10. Pipes

• PVC Pipes:
  • Diameter: 50 mm (2 in)
  • Length: 2750 mm (9 ft 0.2 in) × 4 pieces

11. Ceiling

• Suspension Ceiling:
  • Type: 831 model

12. Edge Trimming

• Corner Trims:
  • 4 pieces

13. Accessories

• Hardware:
  • 1 set of bolts and adhesive

14. Accessories

• Baseboard:
  • Included

15. Electrical System

• Electrical Components:
  • 1 three-prong outlet
  • 3 five-prong outlets
  • 1 switch distribution box
  • 1 industrial outlet
  • Wiring
  • 2 × 36W LED light strips (integrated into the interior wall corners)
