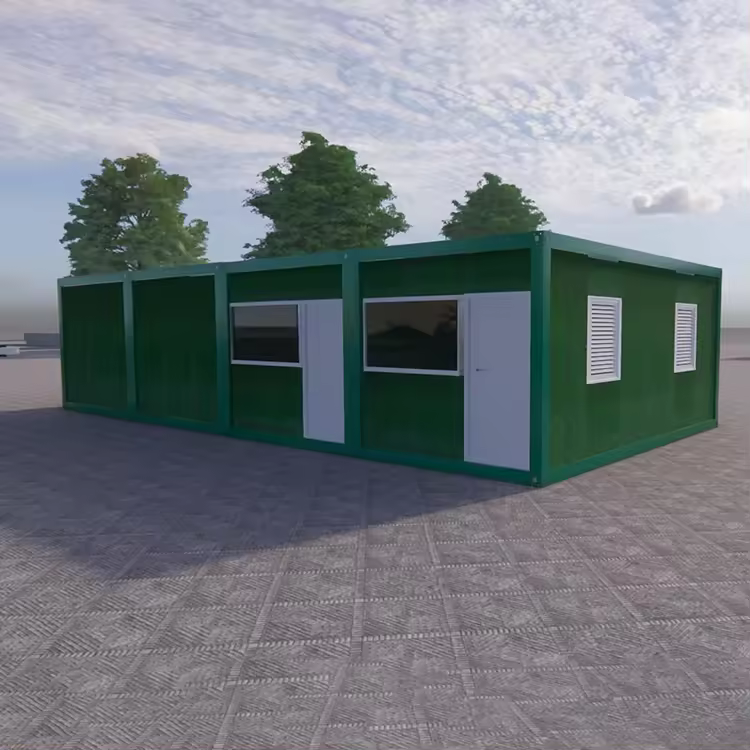

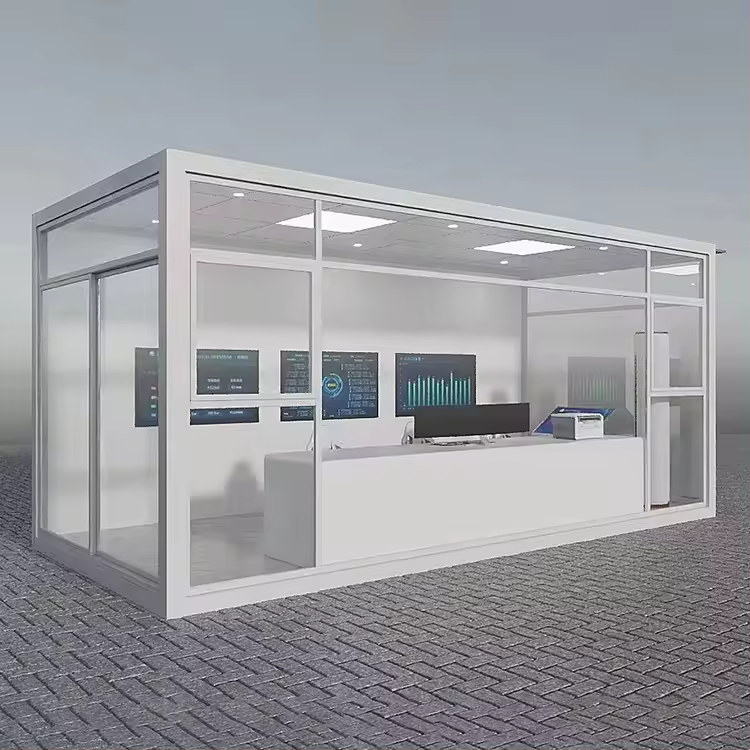

Modular Flat-Pack Container House: Instant Use, Durable, and Sustainable

This modular flat-pack container house is designed for immediate use, requiring no assembly work. It is engineered to be easily moved, transported, and cleaned with water, making it a convenient and durable solution for a variety of applications. The structure is built to last, offering excellent waterproofing, sound insulation, thermal insulation, and environmental sustainability. With a lifespan of up to 30 years, this container house is an ideal choice for both temporary and permanent use, providing long-term reliability and adaptability.

• Steel
• Steel rock wool sandwich panels

• Instant usability with no assembly required
• Easy to move, transport, and clean with water
• Lifespan: up to 30 years
• Excellent waterproofing, sound insulation, thermal insulation, and environmental sustainability

Detailed Specifications

1. Top Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Panels:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 80 mm × 40 mm × 1.2 mm (3.15 in × 1.57 in × 0.047 in)
• Insulation:
  • 18 m² (193.75 sq ft) of glass wool
• Cladding:
  • 18 m² (193.75 sq ft) of painted steel sheet (0.45 mm / 0.018 in thick)

2. Bottom Frame

• Beams:
  • 5530 mm × 2.0 mm (18 ft 1.7 in × 0.079 in) × 2 pieces
  • 2138 mm × 2.0 mm (7 ft 0 in × 0.079 in) × 2 pieces
• Corner Connectors:
  • 4 pieces of 210 mm × 150 mm (8.27 in × 5.91 in)
• Purlins:
  • 9 pieces of 100 mm × 50 mm × 1.2 mm (3.94 in × 1.97 in × 0.047 in)

3. Columns

• Columns:
  • 4 pieces of 210 mm × 150 mm × 2526 mm (8.27 in × 5.91 in × 8 ft 3.4 in)
  • Thickness: 2.0 mm (0.079 in)

4. Bottom Accessories

• Trough:
  • 50S water trough

5. Floor

• Cement Fiberboard:
  • 5 pieces of 18 mm (0.71 in) thick

6. PVC Flooring

• Thickness:
  • 1.6 mm (0.063 in)

7. Door

• Steel Door:
  • Size: 970 mm × 1970 mm (3 ft 2.2 in × 6 ft 5.4 in)

8. Windows

• PVC Single-Glazed Sliding Windows:
  • Size: 930 mm × 1200 mm (3 ft 0.6 in × 3 ft 11.2 in) × 2 pieces

9. Wall Panels

• Steel Rock Wool Sandwich Panels:
  • Model: V950
  • Thickness: 0.3 mm / 50 mm (0.012 in / 2 in)
  • Density: 50 kg/m³

10. Pipes

• PVC Pipes:
  • Diameter: 50 mm (2 in)
  • Length: 2750 mm (9 ft 0.2 in) × 4 pieces

11. Ceiling

• Suspension Ceiling:
  • Type: 831 model

12. Edge Trimming

• Corner Trims:
  • 4 pieces

13. Accessories

• Hardware:
  • 1 set of bolts and adhesive

14. Accessories

• Baseboard:
  • Included

15. Electrical System

• Electrical Components:
  • 1 three-prong outlet
  • 3 five-prong outlets
  • 1 switch distribution box
  • 1 industrial outlet
  • Wiring
  • 2 × 36W LED light strips (integrated into the interior wall corners)
